Kitchen Layouts: L-Shape, U-Shape, Galley, and More

There are five basic kitchen layouts: L-Shape, G-Shape, U-Shape, One-Wall and Galley. The size and shape of the room will typically determine your layout. Although variations and deviations do exist, most kitchen layouts are based on one of the following shapes.

L-Shape Kitchen Layout Graphic

L-Shape Kitchen

The L-shaped kitchen is the most popular design, and is appropriate for any size kitchen. It includes work spaces on two adjoining walls running perpendicular to each other. This layout works well for two cooks working at the same time, since no traffic lanes flow through the work area. If space allows, it is possible to incorporate a center island that doubles as a work space or eating area. The L-Shape kitchen typically opens into another room which makes a great layout for entertaining

U-Shape Kitchen Layout Graphic

U-Shape Kitchen

The U-Shape design is the most versatile layout for both large and small kitchens. It surrounds the cook on all sides and allows for ample countertop space and storage. The U-Shape kitchen creates an efficient work triangle, and creates a large amount of storage space. This arrangement is suited toward separating the cooking space from the dining space. The U-Shape layout is ideal for creating large amounts of storage space.
G-Shape Kitchen Layout Graphic

G-Shape Kitchen

The G-shape layout is a variation of the U-Shape, with the addition of a peninsula or a partial fourth wall, which can be used for extra countertop and storage space. By adding a second sink, cooktop or range, the G-Shape kitchen can easily accommodate two work triangles, allowing two cooks total independence.
One Wall Kitchen Layout Graphic

One Wall Kitchen

The one wall kitchen is the answer for very small homes and condos. The work triangle flattens out by placing the sink between the range and the refrigerator for maximum efficiency. When using the single wall layout, the refrigerator should be positioned so the door opens away from the kitchen sink to remove the possibility of a disturbance in workflow. Take into consideration whether you are right or left handed when placing the dishwasher and frequently accessed kitchen cabinet.
Galley Kitchen Layout Graphic

Galley Kitchen

The galley kitchen is the most efficient layout for a narrow space. It consists of work spaces on two opposing walls with a single traffic lane between. Placing the range or cooktop on one side of the kitchen and the refrigerator and sink on the opposite wall allows for easy workflow. This design can be used so the kitchen opens to the rest of the house on one or both ends. The ideal width for a galley kitchen is 7 to 12 feet and works particularly well in a rectangular space. It can be transformed by replacing a wall with an island or peninsula open to an adjacent room.
Kitchen Island Layout Graphic

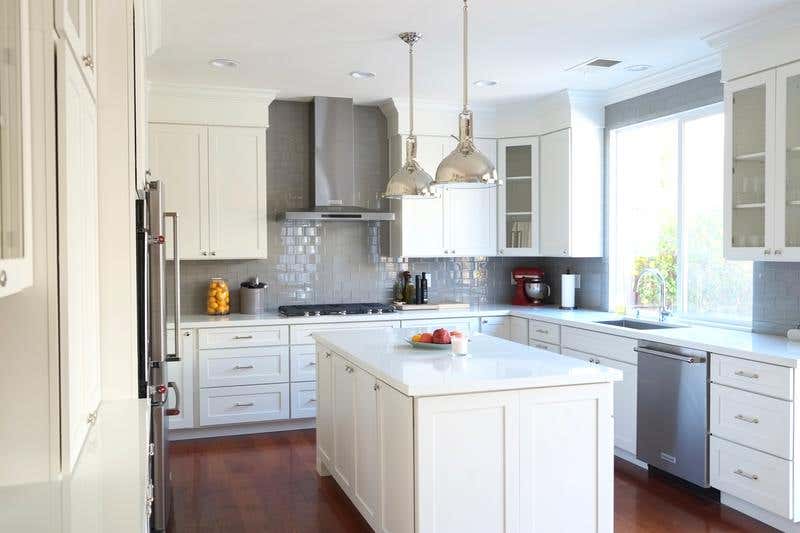

Kitchen Island

The kitchen island is a place to be creative. The size will be determined by the amount of space you have, and the countertop material you are using. At least 36”- 42” of space should surround the island on all sides to allow appliances such as the dishwasher and stove to be opened and closed. If you’re looking at a seamless solid surface countertop, especially granite, the size of the stone can be limiting. Granite and engineered stone slabs generally don’t exceed 120” by 72” and some are much smaller.

Will your island host an appliance, sink, trash, recycling, eating area and food prep area? Since the island has the potential to be a mini-kitchen, it requires a carefully thought-out design.

What are the basic principles of design?
Learn about balance, emphasis, proportion and scale.

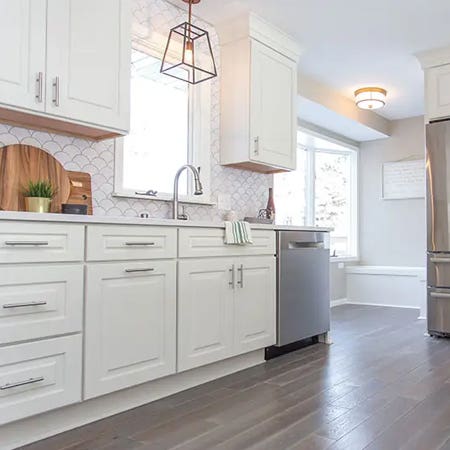

CliqStudios Cambridge kitchen in White showing the work triangle of the sink, refrigerator, and cooktop
